The cement dump is used in cementing operations at production wells to isolate a lower layer in order to check other top layer or in case of an unsuccessful primary cementing.

Generally, the cement dump is used at small deep wells (up to 1500 m) which open very porous layers.

The cement dump is composed of a body (two pieces removable pipe) with pin fastening at the top and discharging valve at the bottom.

The downloading of the cement paste is controlled in the desired area by help of a valve, breaking glass lens.

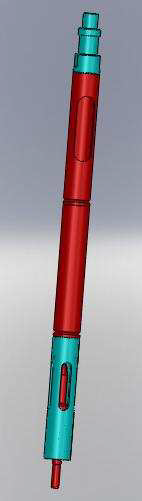

lingura ciment



Configuration. Main components

Item. Description
1 Valve
2 Section 1
3 Section 2
4 Lens
5 Gasket
6 Thread pin



Sizes

Type Outer diameter (mm) Length (mm) Thread pin connection Storage capacity Weight (kg)
Ø42x8 Ø42 9327 15/16"x10 8 l pasta ciment 33,150
Manufacturing alternative type Working environment
TRIM STANDARD Drilling fluids based on water or oilfield products with max. temperature 212˚F (100˚C).
TRIM NACE* Drilling fluids based on water or oilfield products with H2S content-acc. to NACE-MR-01.75- 3rd class, with max. temperature 212˚F (100˚C).
