UZTEL put into manufacturing the Unitized Mud Pump GMP 10 UZT 130 - 2ME with the following characteristics:

Triplex pump type ……………………………………………..10 UZT 130

Electric motor drive type ………………………… …………...type MCF TA2, EExpIIT3, 800 kW,1200 rpm,770 V

Number of drive motors…...……………………………………..2

Electric motor power…………………………………………………800kw

Motor rated speed …...………………………………………  1200 rot/min

Environment temperature………………………………………..-29°C … + 40°C

Drive type …………………………………monoblock belts type 12 R* 8 V 3000

 Triplex pump GMP 10 UZT 130 - 2ME is supplied with  6 3 /4” equipment.





ITEM

characteristic

U/M

ValUE

1.

Pump type

-

triplex;

single acting pistons

2.

Maximum speed on the input shaft

rot/min.

677

3.

Piston stroke

in (mm)

10 (254)

4.

Piston maximum speed

Double stroke / min.

140

5.

 Maximum theoretical flow (with max. diameter piston -liner)

l / min.

2463

6.

Liner maximum diameter (bimetallic version)

in (mm)

6 ¾ (171,5)

7.

Liner minimum diameter

in (mm)

4 (101,6)

8.

Working pressure for the maximum diameter of the liner

psi (kgf/cm2)

3085 (216,9)

9.

Working pressure for the minimum diameter of the liner

psi (kgf/cm2)

5000 (351,5)

10.

Theoretical flow for the minimum diameter of the liner

gallons

(l / min.)

228 (863)

11.

Pump max. power

CP

1300

12.

Gear reduction ratio

-

1 : 4.66

13.

Nominal diameter of the suction pipe

in (mm)

8 (200)

14.

Nominal diameter of the discharge pipe

in (mm)

5 (125)

15.

Pulsation damper type

-

AP-350

16.

Piston rod diameter

in (mm)

3 (76,2)

17.

Valve size, API

nr.

MOD.6

         UNITIZED MUD PUMP GMP 10 UZT 130 - 2ME FEATURES



Cylinders size,

in (mm)

6 ¾

(171,5)

6 ½

(165,1)

6 ¼

(158,8)

6

(152,4)

5 ½ *

(139,7)

5 *

(127,0)

4 ½

(114,3)

4

(101,6)

Discharge maximum pressure,

psi (Kgf/cm2)

3085

(216,9)

3325

(233,8)

3595

(252,8)

3900

(274,2)

4645

(326,6)

5000

(351,5)

5000

(351,5)

5000

(351,5)

Fluid volume per double stroke

(gal/cd), l/ds

4.647

(17,59)

4.309

(16,31)

3.984

(15,08)

3.672

(13,90)

3.085

(11,76)

2.550

(9,652)

2.065

(7,816)

1.632

(6,177)



       Overall sizes of the Unitized Mud Pump GMP 10UZT 130 – 2ME (informative)

                   Length……………………………………………………6600 mm

                 Width……………………………………………… ……..3000 mm

                 Height (with Pulsation Damper) …………………………3450 mm

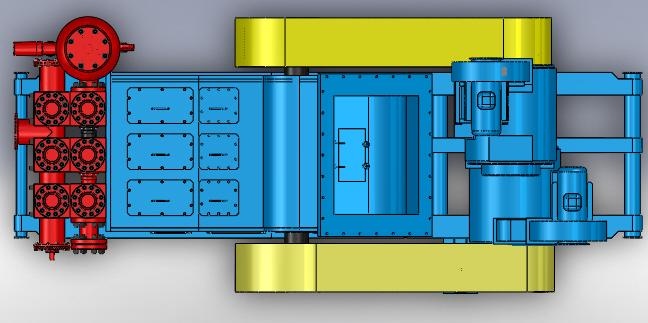

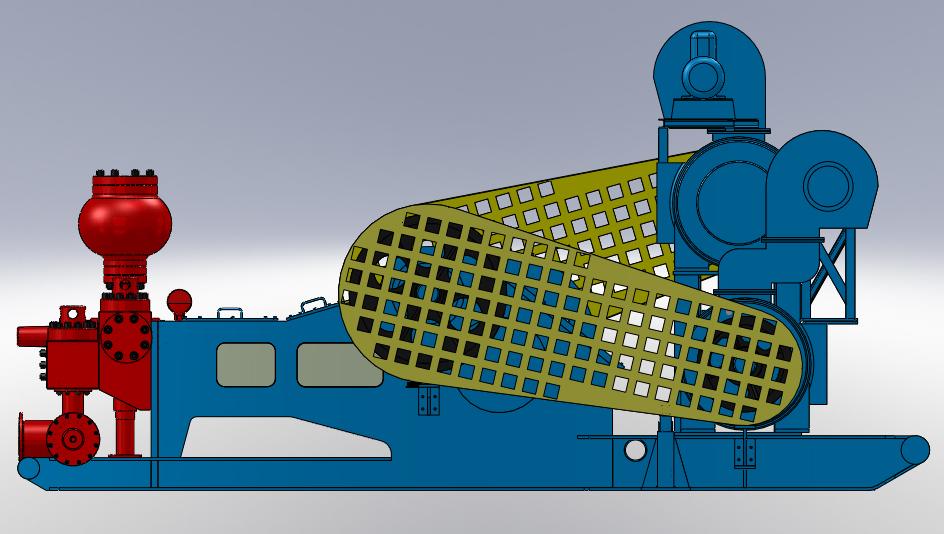

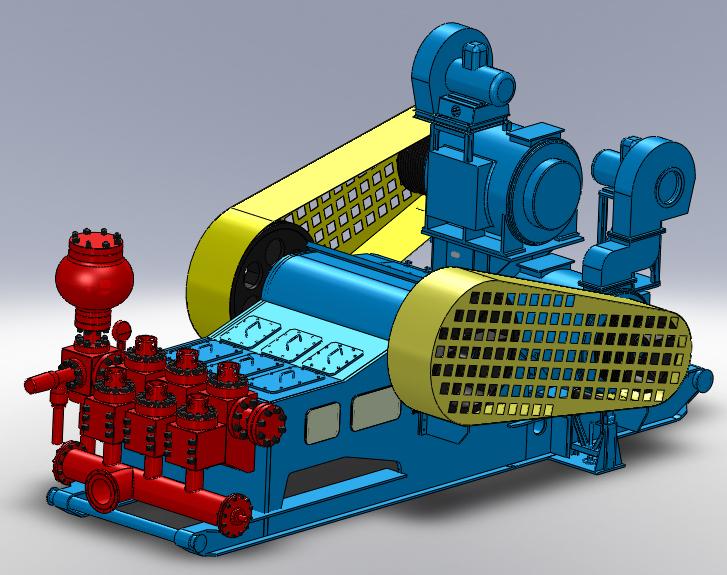

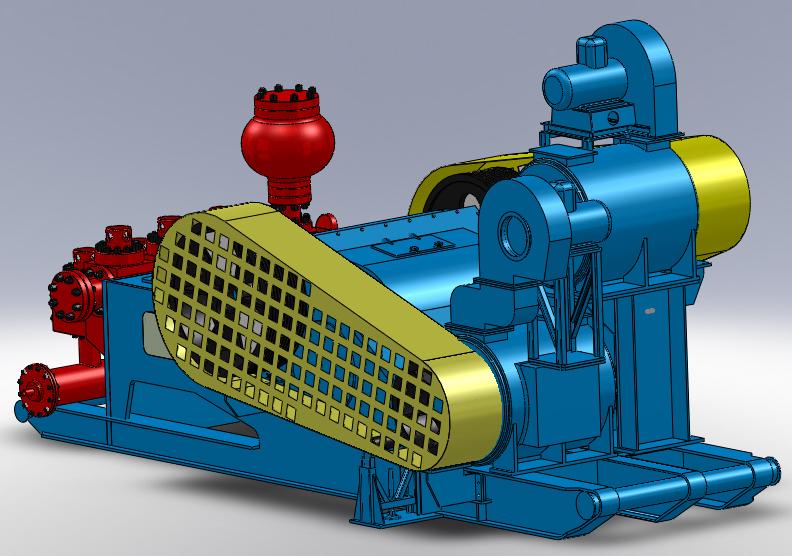

Grup motopompa GMP 10 UZT 130 – 2ME pompa2
