The Paraffin Scraper is a device used in wired fishing operations to detach and clean the paraffin deposition inside the tubing.

The scraper outer diameter can be selected so that it can be as close to the internal diameter of the tubing.

The Paraffin Scraper use ensures the cleaning of the tubing in order to allow the using of a fishing tool.







curatitor parafina

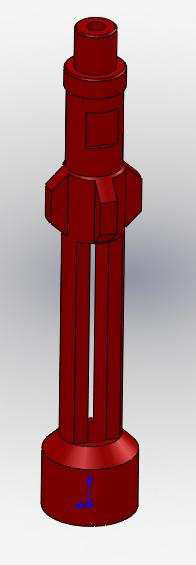

Configuration. Main components: The Paraffin Scraper ia a monoblock device.

Sizes

Type

Outer diameter

(mm)

Length

(mm)

Pin thread

Weight

 (kg)

36 Ø36 300 15/16"x10 1,00

44

Ø44 300 15/16"x10 1,180

46

Ø46 300 15/16"x10 1,210

48

Ø48 300 15/16"x10 1,250

54

Ø54 300 15/16"x10 1,360

57

Ø57 300 15/16"x10 1,410

58.5

Ø58.5 300 15/16"x10 1,440

59

Ø59 300 15/16"x10 1,975

Working environment:

Manufacturing alternative type Working environment
TRIM STANDARD Drilling fluids based on water or oilfield products with max. temperature 212˚ F (100˚ C).
TRIM NACE* Drilling fluids based on water or oilfield products with H2S content-acc. to NACE-MR-01.75- 3rd class, with max. temperature 212˚ F (100˚ C).
